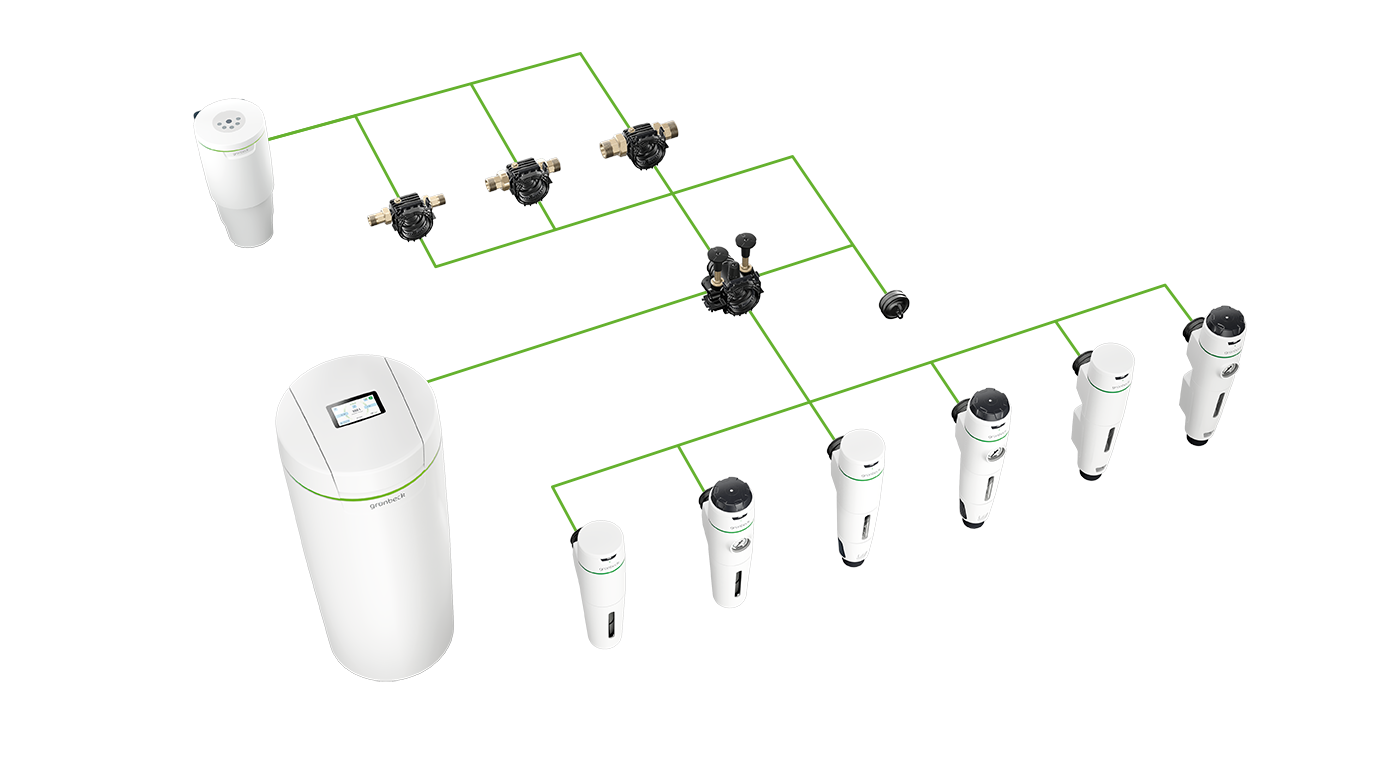

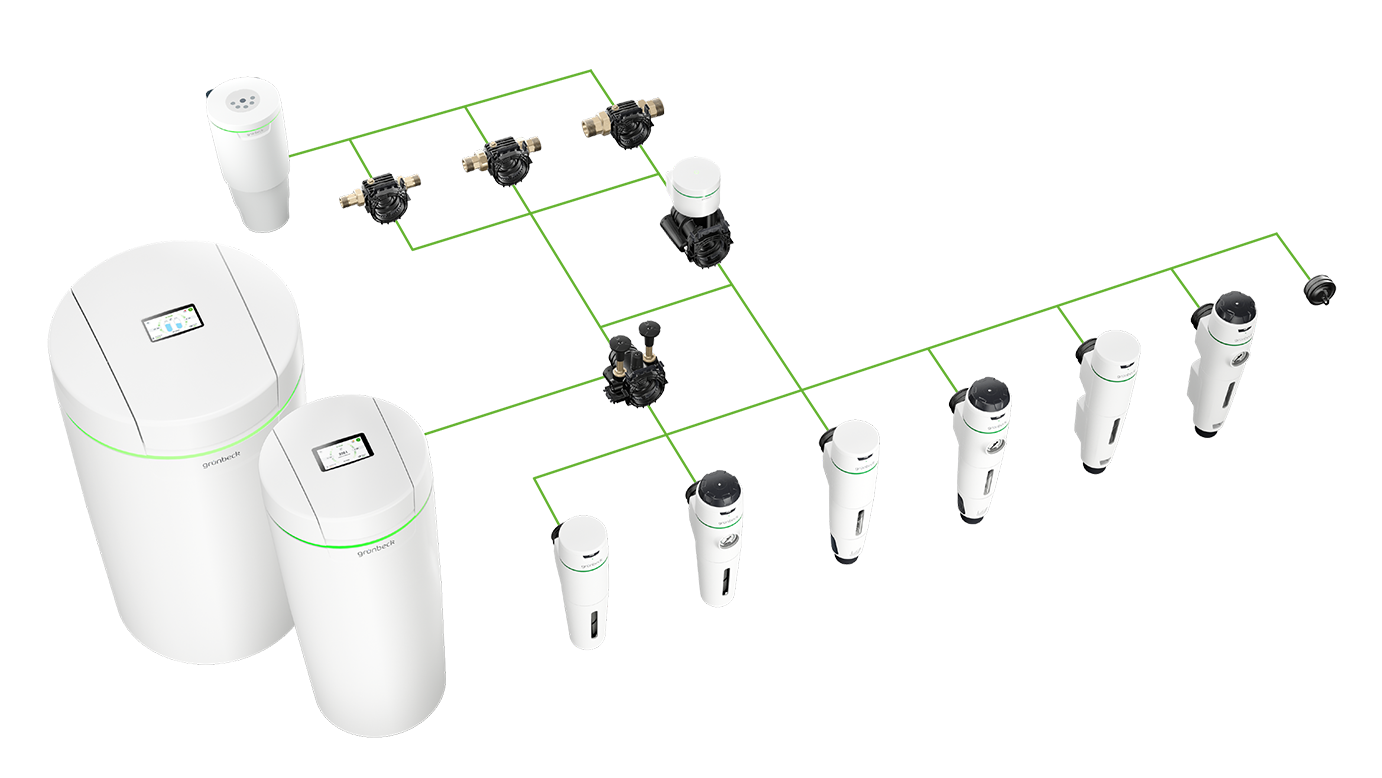

The cliQlock module system
We redefine the installation group
The 100 mm cliQlock module system is designed for maximum ease of installation, efficient use of space and maximum flexibility. The virtually tool-free mounting saves tradesmen valuable working time and, for the first time, gives homeowners the opportunity to have their water treatment system easily and cost-effectively adapted to their needs by a specialist installer at a later date like never before.
The cliQlock module system is the solution for
- technical rooms with little space
- The desire for a water softener among owners of a pureliQ filter from the X series
- The desire for a water softener for owners of an existing 100 mm filter
- Installation of pureliQ X filter and softliQ:SE water softener at different points in the pipework
- Shell constructions in which a spacer is used for the domestic water installation
100 mm of room to manoeuvre
We know from practical experience: Utility rooms are changing. Filter and treatment systems are moving from the cellar to the living area. However, space there is limited. What if water filters, water softening and dosing could be accommodated in just 100 mm? This is made possible with the cliQlock module system.
The starting point for first-class water quality

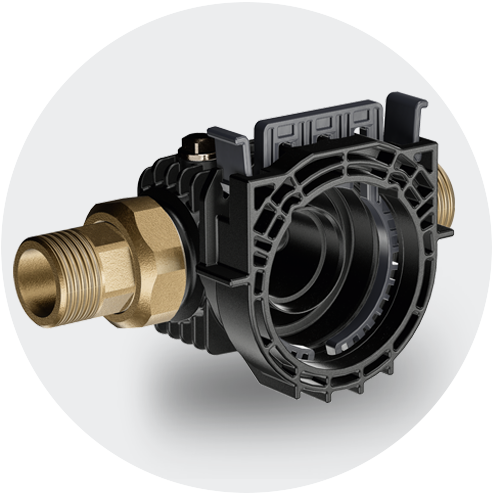

The centrepiece of the new module system is the innovative cliQlock basic module made of high performance plastic (PPO). It has undergone extensive testing for tightness and durability and is in no way inferior to its brass predecessor. It is available in three sizes: ¾", 1" or 1¼". All new pureliQ filter variants can now be combined with all softliQ:SE systems. Reducers are now a thing of the past.
Water for every need
Thanks to the cliQlock system, if homeowners initially only opt for a pureliQ filter from the X series when building a new home, but realise after a while that they would like to have soft water, they can easily retrofit a softliQ:SE water softener from the latest generation at any time. Tool-free in just a few steps. If an installation with 100 mm is already available in existing buildings, such as a water filter (regardless of the brand) the cliQlock system can be used here very easily - turn 1 into 3: Filter, softening, dosing.
Secure and tight with just one click

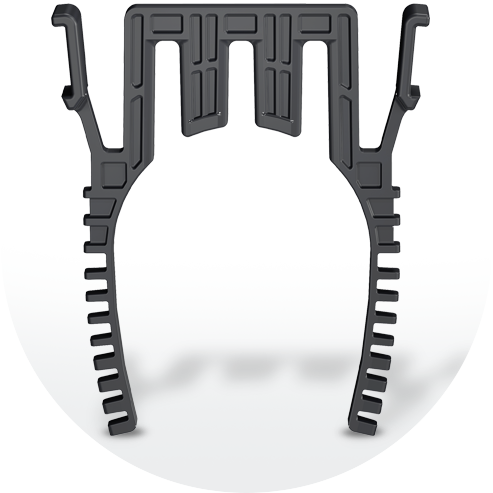

The use of cliQlock clamps is an absolute innovation and exclusive to Grünbeck in the water treatment sector. The positive-locking design replaces conventional screw connections in the tool-free cliQlock module system. The advantages for every craftsman are obvious: Optimum frictional connection by enclosing the component by almost 360 degrees and installation that only takes a few seconds. This not only saves time, but also resources and time-consuming and expensive piping work - click and tight.
Water softeners
softliQ:SE18
|
softliQ:SE21
|
softliQ:SE24
|
|
|---|---|---|---|
| Application recommendation | Up to 4 people | Up to 9 people | Up to 12 people |
| Order no. | 189000020000 | 189000030000 | 189000040000 |
| The product | The product | The product |
Water filter
pureliQ:KX
|
pureliQ:KDX
|
|
|---|---|---|
| Filter type | Fine filter | Fine filter |
| Pressure reducer | — |
|
| Order no. | 101000010000 | 101000020000 |
| The product | The product |
pureliQ:RX
|
pureliQ:RDX
|
|
|---|---|---|
| Filter type | Backwash filter | Backwash filter |
| Pressure reducer | — |
|
| Order no. | 101000030000 | 101000040000 |
| The product | The product |
pureliQ:AX
|
pureliQ:ADX
|
|
|---|---|---|
| Filter type | Automatic filter | Automatic filter |
| Pressure reducer | — |
|
| Order no. | 101000050000 | 101000060000 |
| The product | The product |
