Convenient triple water softener
Soft water is easy on the water installations, saves on cleaning agents and provides advantages with regard to hygiene.

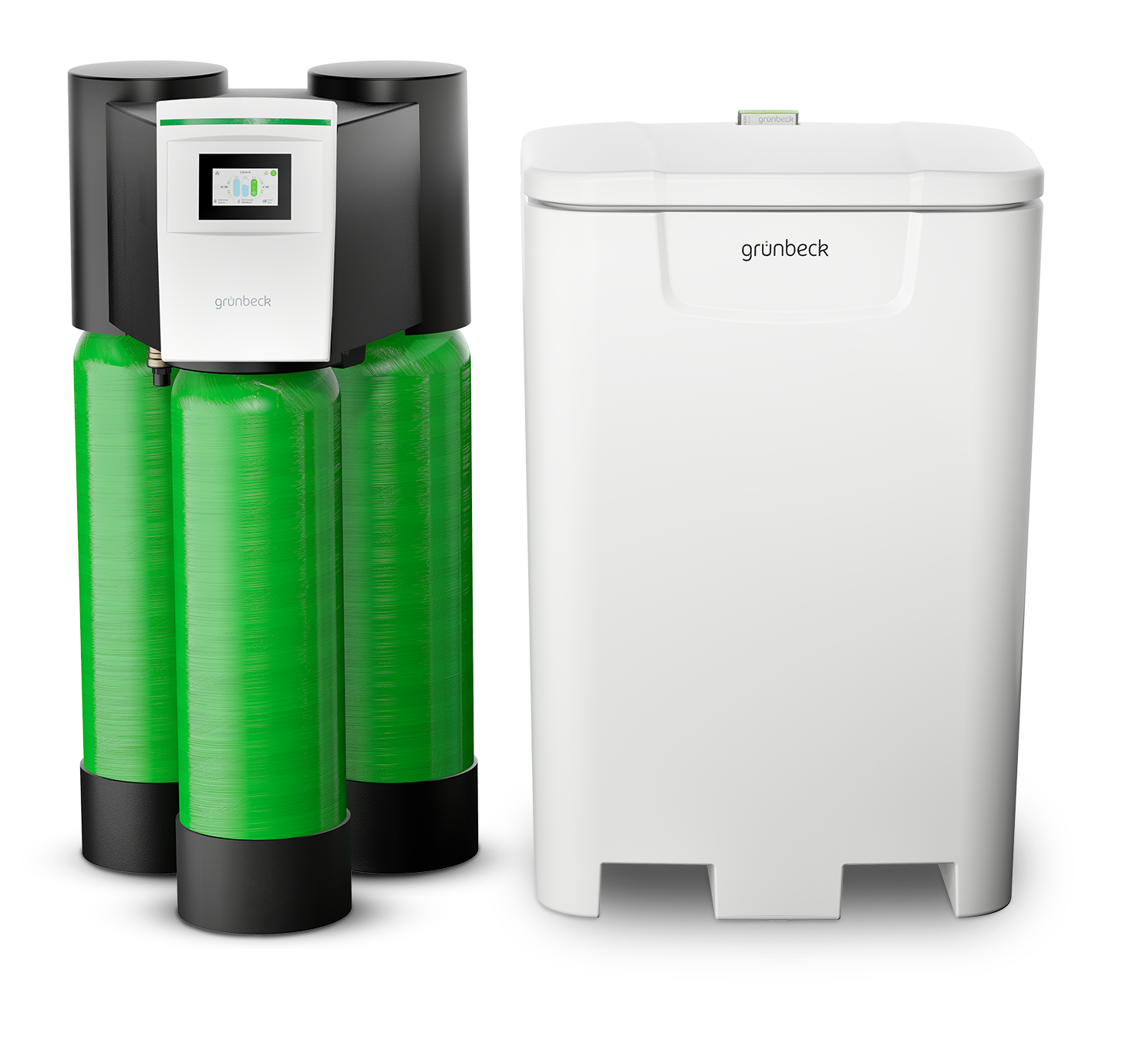

When a lot is not enough. Residential estates, businesses and hotels have fundamentally different requirements for water treatment compared to private households. Treating large quantities of water with low pressure loss requires a system that is designed for this purpose. The softliQ:LB water softener has been completely redesigned for this reason. Its unique 3-pillar design, the intuitive softliQ interface with many connectivity features and an innovative brine tank with a large filling capacity of 275 kg, make it the most powerful and sophisticated water softener in its class.
Low pressure loss - three ways to maximise output
Three is better than two. In order to achieve up to 20 cubic metres of treated water per hour, Grünbeck relies on three exchangers, two of which have a permanent parallel flow. This feat is achieved thanks to a crucial component: the 3-way valve. This Grünbeck in-house development ensures a low pressure loss with a maximum flow rate. The fact that little pressure is lost in the softening process means that it's available for downstream installations. In some circumstances, a pressure booster system can be dispensed with, or even pipes can be dimensioned smaller. Conversely, this means lower material usage and lower costs.

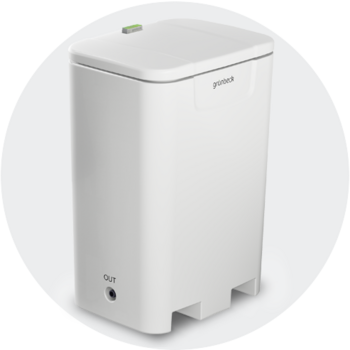

SoftliQ brine tank
Plenty of volume with clever functions
Familiar in appearance, well thought-out in detail. Every softliQ:LB water softener is supplied with a 275 kg brine tank as standard. The ingenious design simplifies maintenance and cleaning. Equipped with many useful features and plug & play, the brine tank is a highlight in its own right.
Cleaning-optimised design for easy maintenance
Salt deposits won't stand a chance in the future. The brine tank has been designed in such a way that residues can be flushed out quickly and easily in just a few minutes without having to drain the regeneration salt first. The flushing connections on the brine tank direct deposits to where they belong: the drain. Ergonomics and time savings made by Grünbeck.

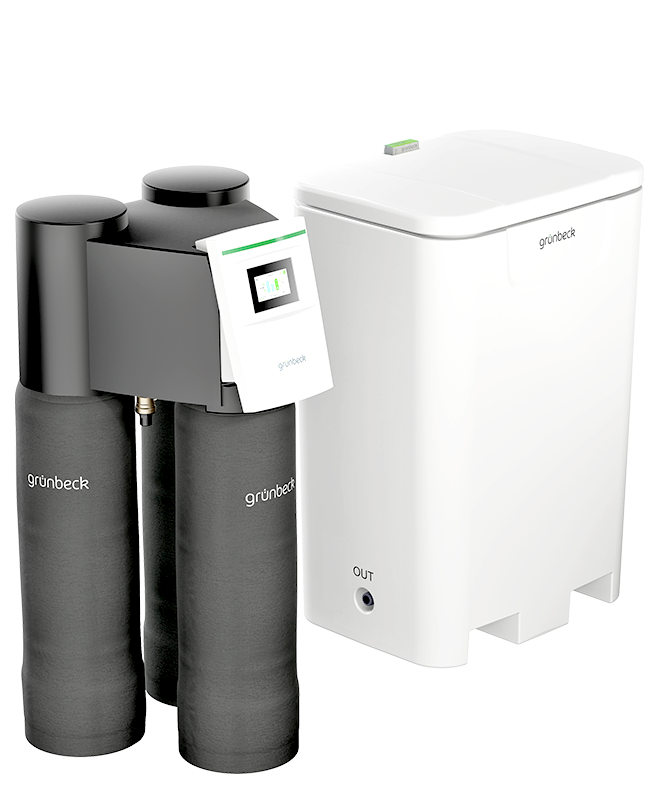

Water softener softliQ:LB
softliQ:LB
|
LB50 | LB70 | LB100 | LB120 |
|---|---|---|---|---|
| Nominal connection diameter [DN] | 25 | 32 | 40 | 50 |
| Nominal flow at a pressure loss of 1.0 bar KV value (DIN EN 14743) [m³/h] | 5.0 | 7.0 | 10.0 | 12.0 |
| Nominal flow at a pressure loss of 1.0 bar, from 20 °dH (3.56 mmol/l) to 8 °dH (1.42 mmol/l) [m³/h] | 8.4 | 11.7 | 16.7 | 20.0 |
| Continuous flow [m³/h] | 3.0 | 5.0 | 8.0 | 12.0 |
| Pressure loss at continuous flow [bar] | 0.52 | 0.65 | 0.65 | 1.00 |
| Salt consumption per regeneration [kg] | 1.5 | 2.5 | 5.2 | 7.2 |
| Capacity per kg of regeneration salt [mol/kg] | 5.7 | 5.7 | 5.7 | 5.7 |
| Order no. | 185000100000 | 185000110000 | 185000120000 | 185000130000 |
| Order no. with pedestal | 185000200000 | 185000210000 | 185000220000 | 185000230000 |
Water softener softliQ:LBi (industrial version)
|
SoftliQ:LBi
|
LB30i | LB50i | LB80i | LB120i |
|---|---|---|---|---|
| Nominal connection diameter [DN] | 25 | 32 | 40 | 50 |
| Continuous flow [m³/h] | 3.0 | 5.0 | 8.0 | 12.0 |
| Pressure loss at continuous flow [bar] | 0.52 | 0.65 | 0.65 | 1 |
| Salt consumption per regeneration [kg] | 1.5 | 2.5 | 5.2 | 7.2 |
| Capacity per kg of regeneration salt [mol/kg] | 5.7 | 5.7 | 5.7 | 5.7 |
| Order no. | 185000500000 | 185000510000 | 185000520000 | 185000530000 |
| Order no. with pedestal | 185000600000 | 185000610000 | 185000620000 | 185000630000 |
