GENO-mat duo WE-X
|
GENO-mat WF
|
GENO-mat ZF
|
|
|---|---|---|---|
| System type | Twin system | Single system | Single system |
| Control type | Volume control | Volume control | Time control |
| Control head | Central control valve made of red brass | Control head made of red brass | Control head made of red brass |
| Salting | Economy salting (with blending unit) | Economy salting (with disinfection unit) | Full salting |
| Alternative | Full salting for residual hardness < 0.1 °dH | Full salting for residual hardness < 0.1°dH | — |
| Application range | 2.0-9.5 m³/h | 2.0-9.5 m³/h | 2.0-9.5 m³/h |

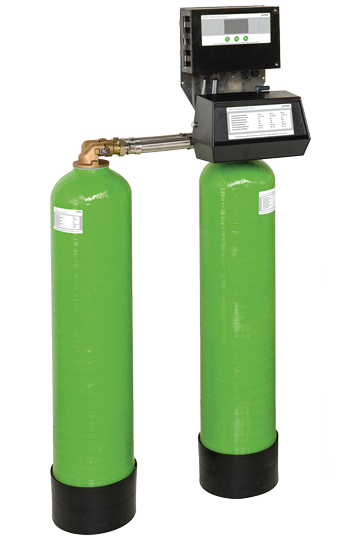

The GENO-mat duo WE-X (partially) softens drinking and industrial water, e.g. well water, process water, boiler feed water and cooling water. The volume-dependent controlled water softeners work according to the ion exchange process and are equipped with a central control valve for both exchanger tanks. As twin systems, they are suitable for the continuous supply of soft water, regeneration with full salting (industry, softening < 0.1 dH) and economy salting (residential houses) is on offer. The soft water is blended to the desired hardness range (preferably hardness range 1) via a blending unit, which is integrated in the sizes 50, 130, 230. The systems are available in five sizes from 2.0 m³/h to 9.5 m³/h peak flow.

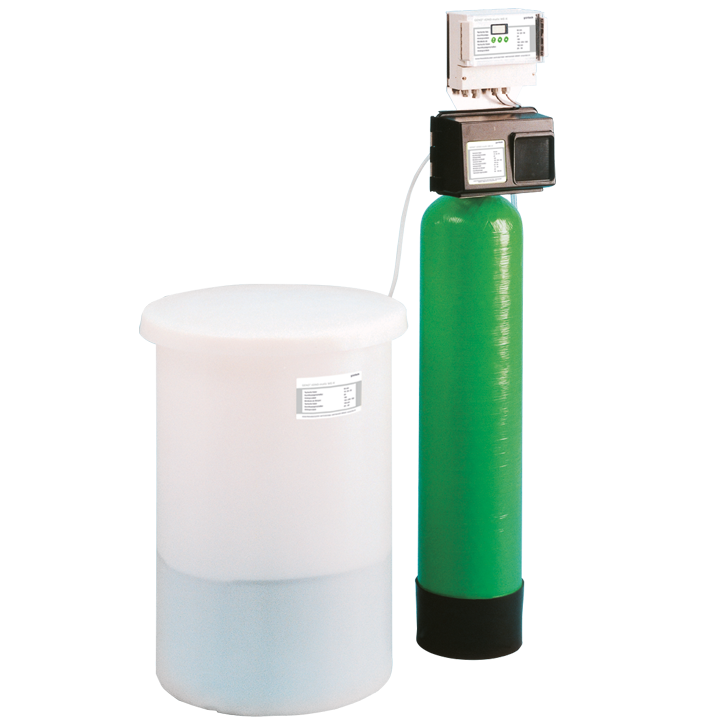

Water softeners of the GENO-mat ZF series are designed for the softening and partial softening of drinking and industrial water. They mainly work in industrial areas of application with specified water consumption, where soft water is not required all the time. The water softening systems use the ion exchange process. With full salting, the GENO-mat WF softens to less than 0.1 dH in industry, with economy salting it is popular in commerce. A blending device (optional) blends the water to hardness range 1. The GENO-mat WF has an integrated bypass (bypass line) for the supply of raw water during regeneration, which is volume-dependent.

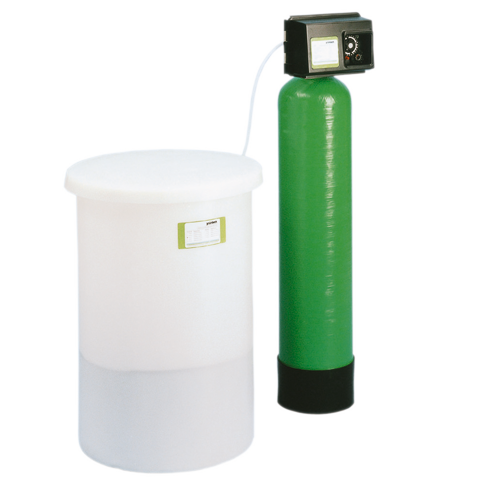

Water softeners of the GENO-mat ZF series are designed for the softening and partial softening of drinking and industrial water. They mainly work in industrial areas of application with specified water consumption, where soft water is not required all the time. The systems use the ion exchange process. The GENO-mat ZF are regenerated with full salting and are therefore suitable for softening to less than 0.1 dH. They have an integrated bypass (bypass line) for the supply of raw water during regeneration. This is triggered after a set time interval. The systems are available in five sizes from 2.0 m³/h to 9.5 m³/h peak flow.
