Convenient initial filling

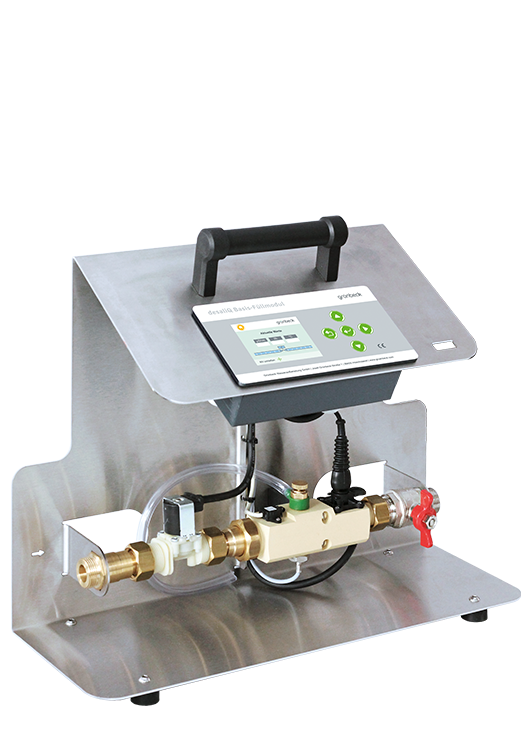

The Grünbeck desaliQ Inline filling module

Long-life

Protection of the individual components and a long service life of the device thanks to a housing made of sturdy, stainless steel

Smart

Intuitive control unit and clear user interface for ease of use



Variable

Suitable for any location thanks to its light weight and practical carrying handle

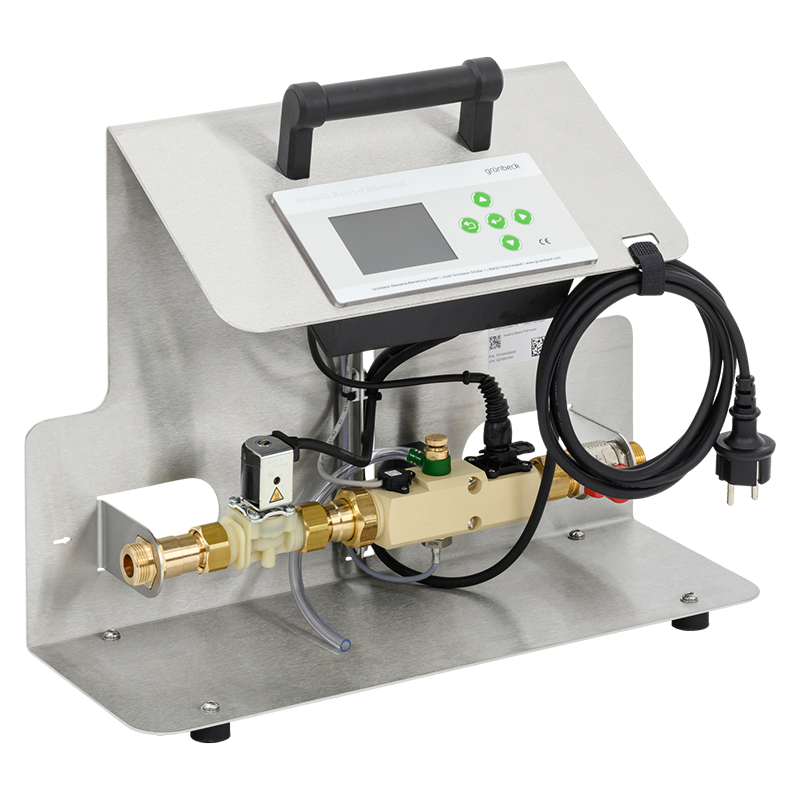

The desaliQ basic filling module ensures safety

To ensure that optimum water always flows in the heating water circuit, Grünbeck recommends using fully demineralised water for the initial filling. The proven desaliQ:MB9 mixed bed cartridge is ideal for initial filling. Thanks to the new desaliQ basic filling module, this has never been so straightforward! Not only does it serve to optimally monitor and control the filling process for consistently excellent heating water quality, but the desaliQ basic filling module also thinks for itself! The smart control unit automatically switches off the filling process at the end of the cartridge's capacity.

Everything important at a glance

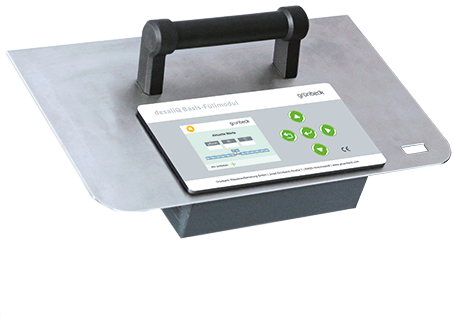

The control unit of the desaliQ basic filling module focuses on being user-friendly. The large colour display shows all important measuring values clearly and concisely. The handling is absolutely intuitive thanks to the clearly arranged operating keys.

One tool, however highly versatile

The desaliQ inline control module is predestined for system filling with fully demineralised water. But that's not all! It is also suitable for filling systems with softened water. Thanks to the smart control unit, the cartridge capacity is also monitored in this case.
Grünbeck attaches great importance to durability and quality. The high-quality components of the desaliQ inline control module ensure reliable operation and a long product service life.

Technical specifications

desaliQ basic filling module

Nominal connection diameter [DN] 3/4"
Power supply [V] 230
Nominal pressure [PN] 6
Nominal flow [m³/h] 1.3
Weight [kg] 5.4
Max. water temperature [°C] 35
Order no. 707000050000
