Getting an idea of what makes your water valuable.
To Grünbeck, water softening is not simply a process. By taking the hardness out of the water, we give it something really precious: The power to improve your quality of life. And to maintain the value of your home. Our experts incessantly continue to further develop well-proven technology to make the most our of our water for you. With the innovative softliQ:SE water softeners, we open up new worlds of soft water for you.
Find the right softliQ for your needs:
softliQ:SE18
|
softliQ:SE21
|
softliQ:SE24
|
|
|---|---|---|---|
| Application recommendation | 1 - 4 Persons | 1 - 9 Persons | 1 - 12 Persons |
| Salt supply | 35 kg | 35 kg | 35 kg |
| Soft-Close function |
|
|
|
| For the cliQlock module system |
|
|
|
| Touch screen |
|
|
|
| Wi-Fi function |
|
|
|
| Control unit via Grünbeck myProduct - App |
|
|
|
| Illuminated LED ring | — |
|
|
| Salt quantity display | — |
|
|
| Water sensor | — |
|
|
| iQ-Comfort interface (2x) | — |
|
|
| LAN interface | — |
|
|
| Connection for delivery pump for regeneration water | — | — |
|
| Drain connection | — | — |
|
| Hose insulation included | — | — |
|
| Information water temperature and adaptive system disinfection | — | — |
|

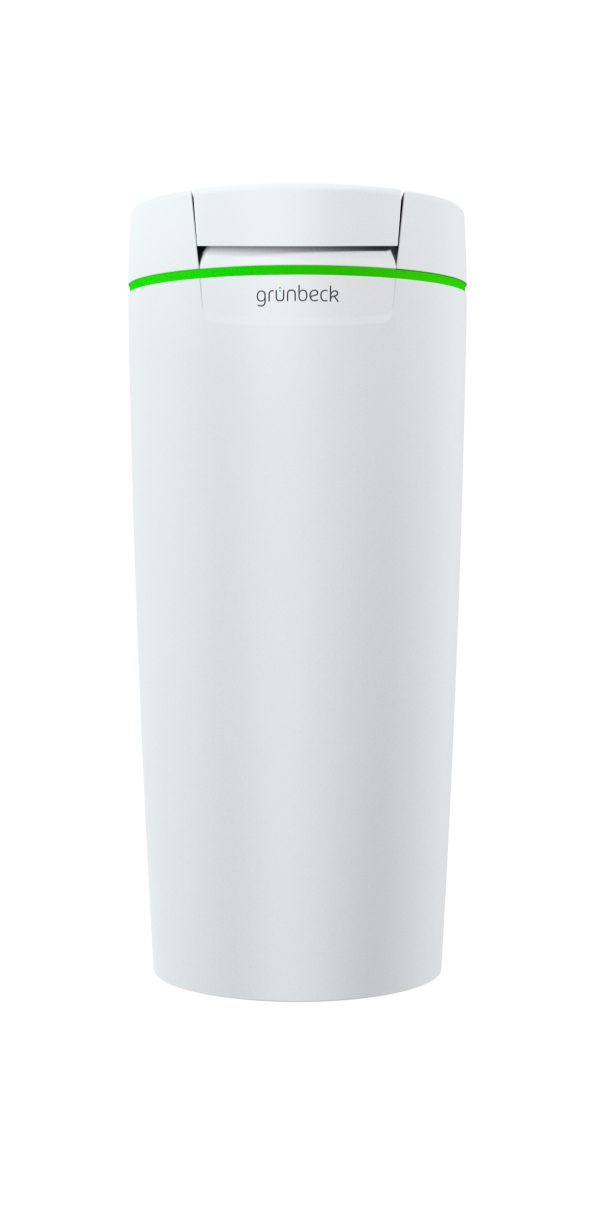

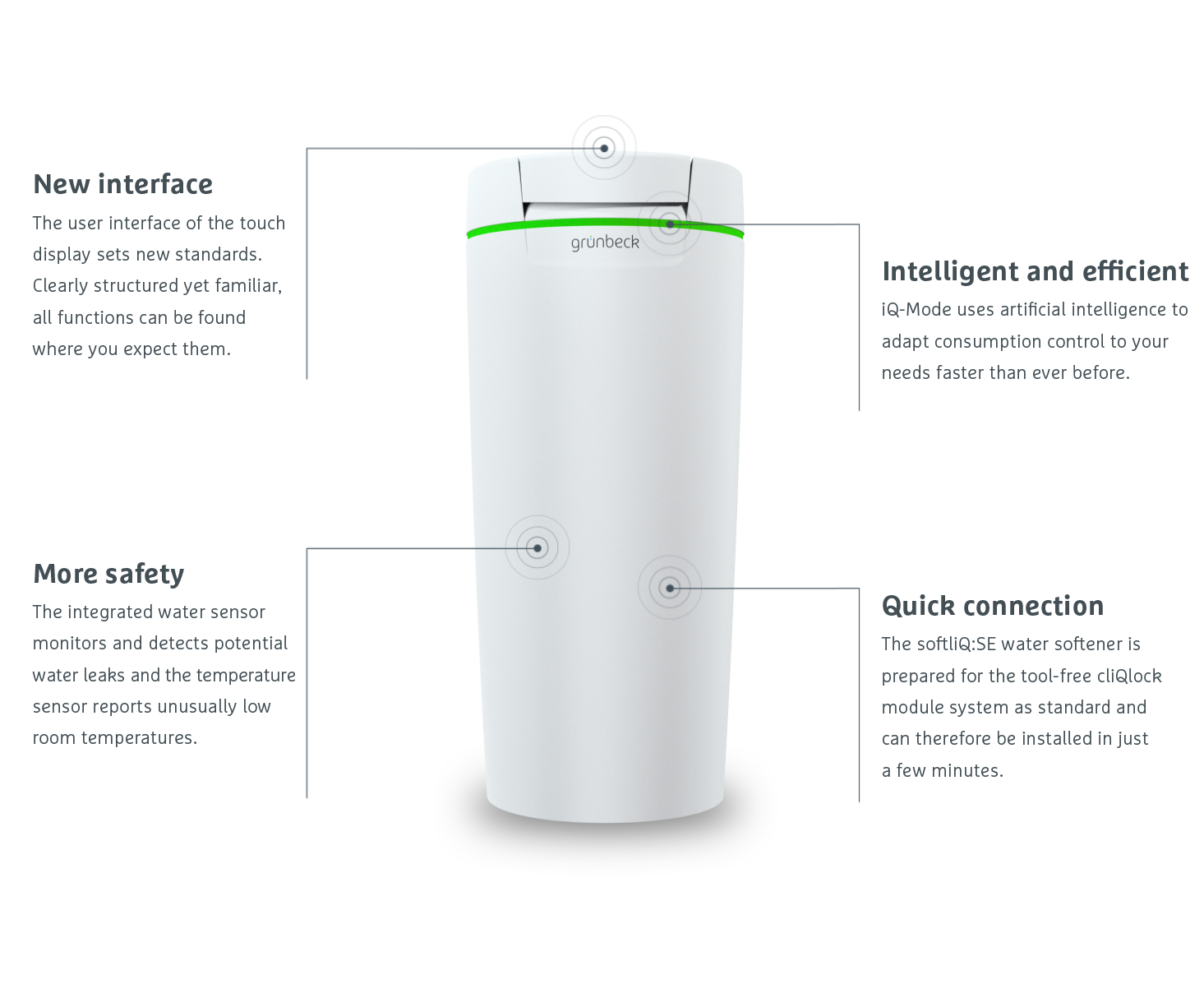

The all-rounder in its field
The first softliQ generation revolutionised the market for small water softeners. Connectivity, efficient technology and timeless design made it the most popular water softener in its segment and established Grünbeck as the market leader. True to the company's philosophy of "understanding water", all the experience gained in recent years has been channelled into the latest generation in order to rethink softliQ wherever craftsmen and users want it. For a Grünbeck experience like never before. Welcome to softliQ:SE!

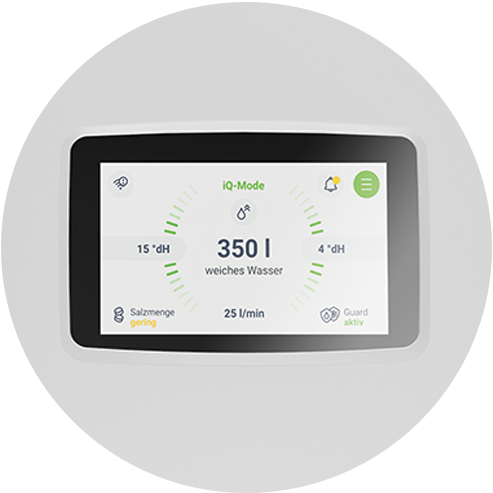

New user interface
One new feature of the softliQ:SE series appears right from the initial start-up. An interface has been created that sets new standards. Clearly structured and yet familiar, all functions for start-up and system operation can be found where you expect them. Further information and tips provide answers before questions can even arise.

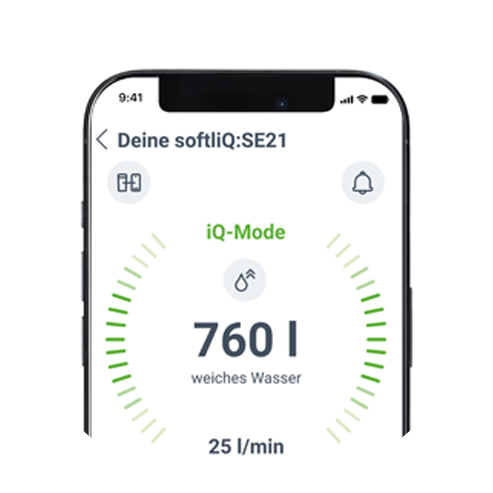

App and cloud connection
Connectivity often distinguishes a good product from a great one. Integrating the softliQ:SE water softener into the cloud is easier, faster and more intuitive than ever before. At the same time, navigation in the myProduct app has been adapted to the system's interface. You can access and control your system’s data and operating mode in real time all over the world. The integration takes place via your own Wi-Fi or, alternatively, via your LAN connection.
Autonomous determination of requirements and individual setting options
Your softliQ system is your soft water expert that is getting more intelligent every day. Based on the set raw water hardness and the water withdrawals, all softliQ systems continuously adapt to the conditions prevailing on site. SoftliQ determines its average consumption for each day of the week based on the last four weeks. Softener performance is then controlled on a daily basis. In addition, the system checks and optimises this consumption profile on a daily basis. The time of regeneration is also customised for you. This takes place at a time when no water is usually taken.

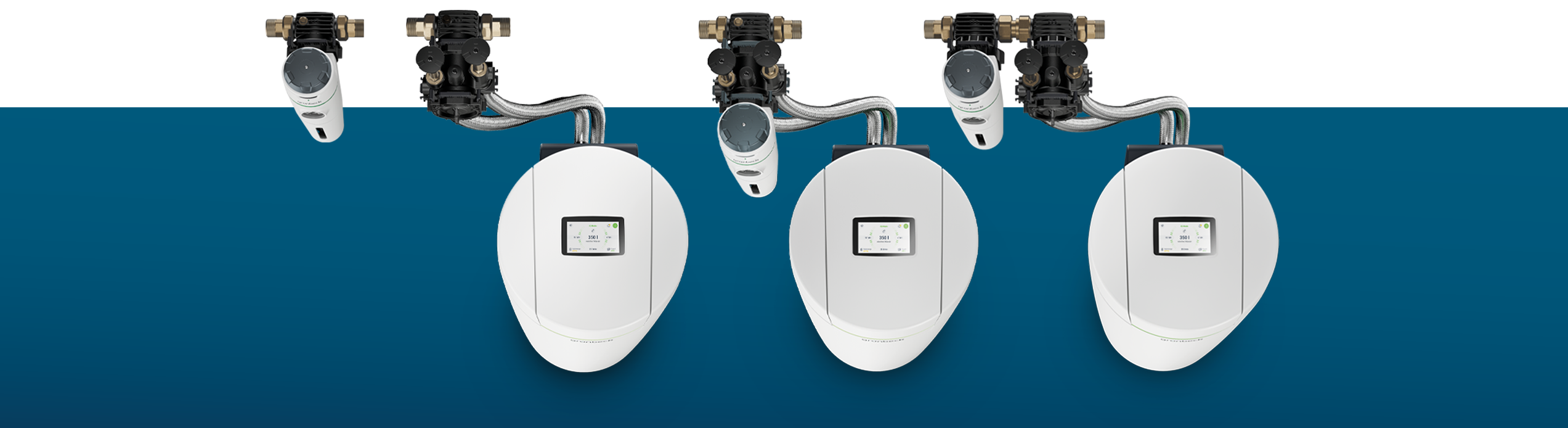

The softliQ:SE water softener is prepared for the tool-free cliQlock module system as standard. Mounting takes just a few minutes.

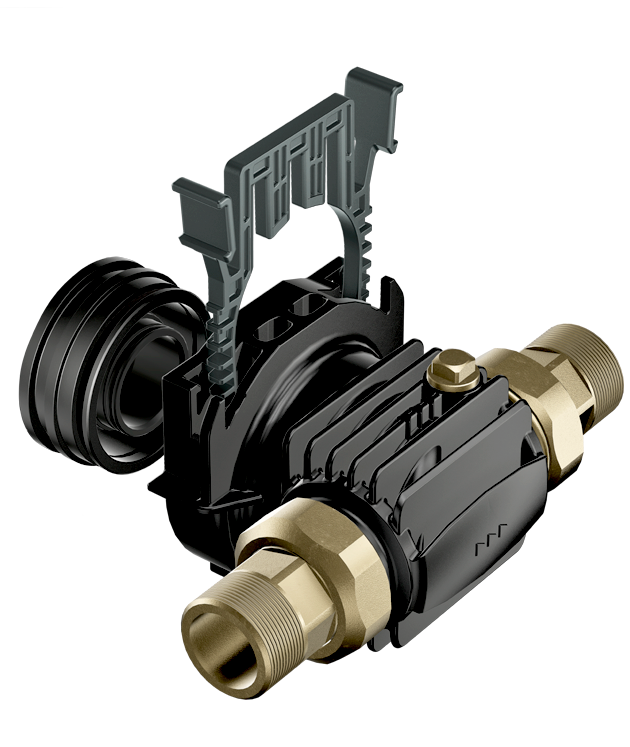

The basis is the 100 mm short cliQlock basic module or a pre-assembled pureliQ filter from the latest X generation. The connection module for softliQ:SE is first clicked onto the cliQlock basic module installed in the line using cliQlock clamps and then the pureliQ filter is added if required.
Whether horizontal or vertical pipes, depending on the direction of flow, all cliQlock components can be rotated 360 degrees and put into the correct position. This also applies to the connection hoses, which are also attached to the connection module using cliQlock clamps. Tension-free mounting will not be a problem in future.
The brilliant thing: The pipe diameter no longer plays a role with pureliQ and softliQ:SE. This decision must only be made once when selecting the cliQlock basic module, which is available in sizes ¾", 1" and 1¼". All of this makes for an even simpler installation, where pipework must only be carried out once at one point.
|
softliQ:SE
|
18 | 21 | 24 |
|---|---|---|---|
| Connection diameter in combination with the cliQlock basic module [DN] | 20 / 25 / 32 | 20 / 25 / 32 | 20 / 25 / 32 |
| Nominal flow at a pressure loss of 1.0 bar KV value (DIN EN 14743) [m³/h] | 1.8 | 2.1 | 2.4 |
| Nominal flow at a pressure loss of 1.0 bar, from a raw water hardness of 20 °dH (3.56 mmol/l) to a soft water hardness of 8 °dH (1.42 mmol/l) [m³/h] | 2.9 / 3.0 / 3.1 | 3.4 / 3.5 / 3.6 | 3.9 / 4.0 / 4.1 |
| Application recommendation by Grünbeck: from ... to ... persons | 1 - 4 | 1 - 9 | 1 - 12 |
| Dimensions (w x h x d) [mm] | 360 x 815 x 430 | 360 x 815 x 430 | 360 x 815 x 430 |
| Height with open lid [mm] | 1060 | 1060 | 1060 |
| Order no. | 189000020000 | 189000030000 | 189000040000 |
