Experience purity in terms of design and performance
Hygiene starts with the design. With the perfectly designed pureliQ filter series, we set new standards in water filtration. Intuitive handling and innovative functions make it your filter champion for excellent water purity. Give yourself the gift of a better quality of life and maintain the value of your water installations and appliances thanks to pure water.
Grünbeck’s pureliQ filters: New standards for the pure enjoyment of water.
Solid substances such as rust particles or sand grains may cause severe corrosion damage in pipes and fittings. The pureliQ filters make sure that it won’t come to that in the first place. They are the essential first step of water treatment and effectively protect water installations in household, trade and industry.
The perfect solution for your needs.
Grünbeck’s filter solutions perfectly work in all fields of application. For each and every product is being developed with due diligence and tailored to prevailing needs - designed for today's as well as for future requirements. With the pureliQ filter series, we have the perfect solution for your needs. And another feature is incorporated: The good feeling that with Grünbeck you will always enjoy high quality, long life cycles and reliable maintenance and service.

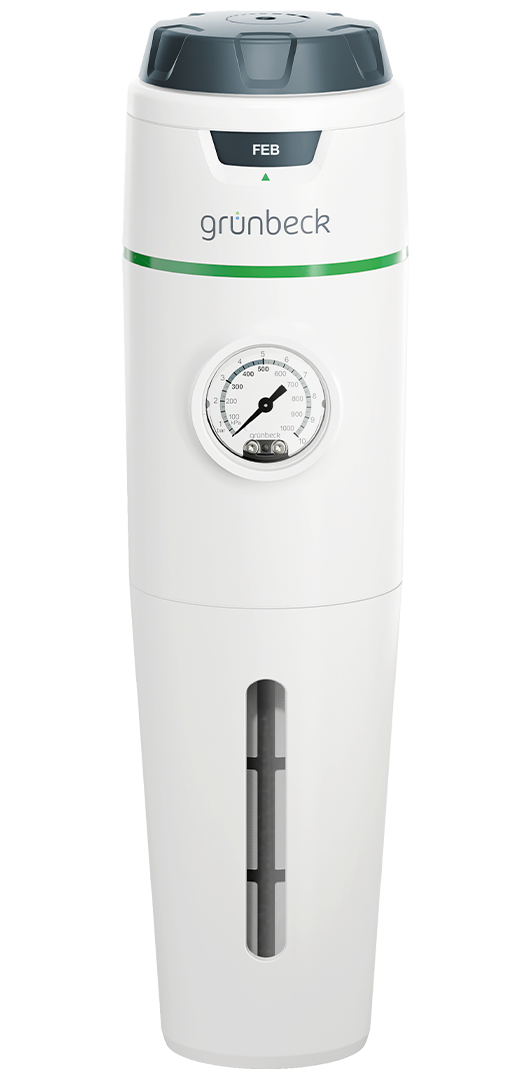

Fine filters pureliQ:KX and pureliQ:KDX
Reliable filter capacity over a long period of time simply by changing the filter element. Replacement of the filter element in the case of impurities, increased differential pressure and for reasons of hygiene, every 6 months. The pureliQ:KDX features a pressure reducer for constant water pressure.
Everything is 100 mm
As a pureliQ owner, you will have a decisive advantage in the future. If you decide to install a softliQ:SE water softener at a later date, your specialist installer can retrofit it for you without tools in just a few minutes. A connection module is then inserted between the cliQlock basic module and pureliQ, which is fastened with cliQlockclamps. A softliQ:SE water softener can now be connected here as usual using the connection hoses. If required, an exaliQ dosing system can also be retrofitted.
Installation
The cliQlock module system - click and tight
The basis is the cliQlock basic module, which is installed directly into the water pipe. The latest generation pureliQ filter is simply clicked onto this using cliQlock clamps. It doesn't matter whether horizontal or vertical pipes are available. Depending on the direction of flow, the filter can be put into the correct position by rotating it by up to 360 degrees. A clean and reliable backwash is achieved by the filter series thanks to its flexible drain connection DN 50 (for backwash and automatic variants) with integrated, free outlet as per DIN EN 1717. All components in contact with water are verified for leaks by means of a test process using sterile air before delivery.
Design
Setting standards. In the detail.
The closed design of the pureliQ filter series perfectly protects the filter element from UV light and algae growth. Thanks to the seamless shape of the housing, the surface stays pristine longer and is easy to clean, if needed. Hygienic design for ideal water filtration. Made in Germany.
pureliQ:KX
|
pureliQ:KDX
|
||
|---|---|---|---|
| Connection diameter in combination with the cliQlock basic module [DN] | 20 / 25 / 32 | 20 / 25 / 32 | |
| Filter fineness according to DIN EN 13433-1 [mm] | 0.1 (100 μm) | 0.1 (100 μm) | |
| Water/ambient temperature [°C] | 30/40 | 30/40 | |
| Installation length with CliQlock basic module [mm] | 100 | 100 | |
| Nominal pressure [PN] | 16 | 16 | |
| Nominal flow ∆p = 0.2 bar [m3/h] | 3.1 / 3.7 / 4.0 | - | |
| Nominal flow ∆p = 0.5 bar [m3/h] | 5.0 / 6.0 / 6.3 | - | |
| Nominal flow as per DIN EN 1567 [m3/h] | - | 2.3 / 3.6 / 5.8 | |
| Order no. | 101000010000 | 101000020000 |
